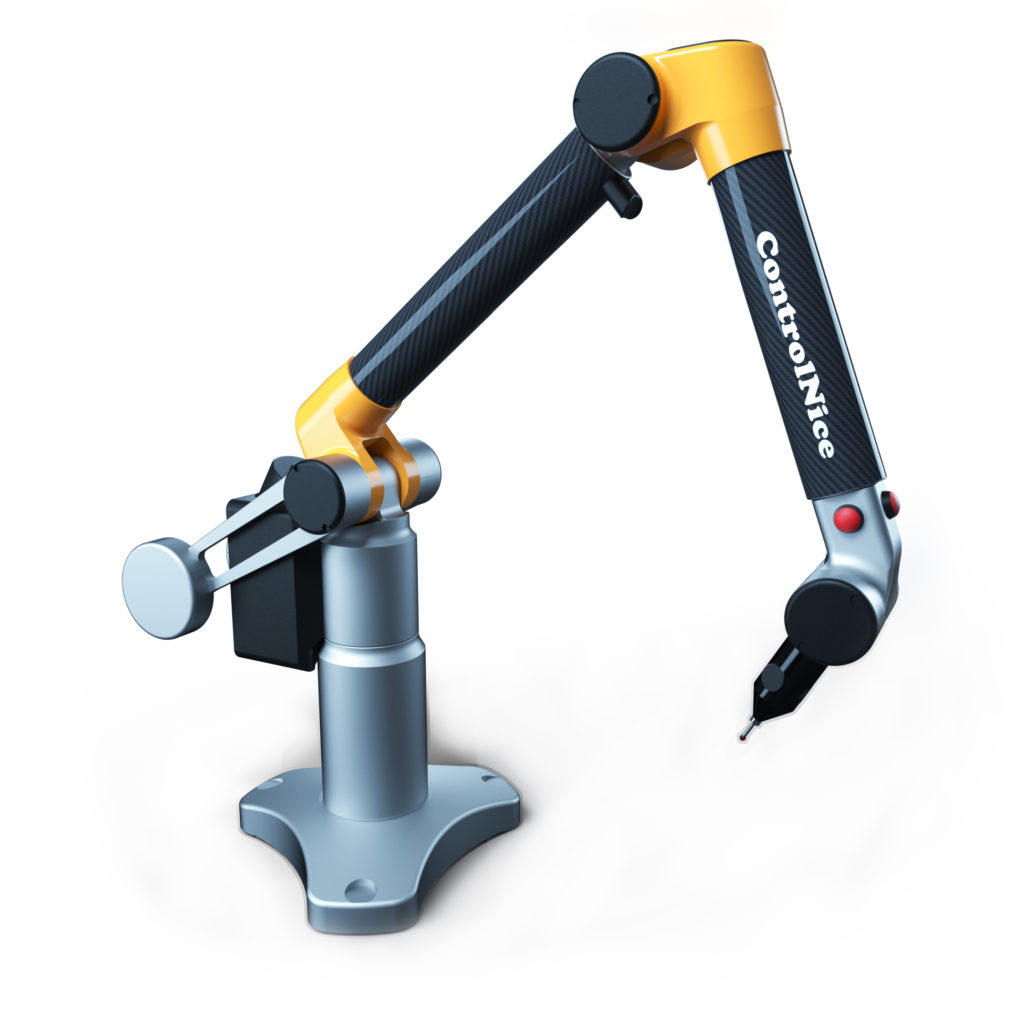

CNA-S Arm is the result of over thirty years of experience in the manufacturing of high-end Articulated Arm. Further improved by new hardware and software solutions, this arm reaches a level of accuracy never seen before.
PERFECT BALANCE The CNA-S Arm is characterized by a completely new handling solution with an optimized mass counterbalance, making the arm very light in the hands and ensuring an immediate confidence.
HOME POSITION IN FRONT Thanks to the innovative counterbalance, the CNA-S Arm has a safe home position directly in front of the operator. To take the arm and to put it back has never been so quick and easy.
READY TO OPERATE The CNA-S Arm is designed to obtain the best performances with the best handling conditions. The arm can be placed directly on the supporting surface without fixation, or on a tripod, as preferred.
LARGE SOFTWARE SELECTION The CNA-S Arm keeps the compatibility with the main inspection software available.

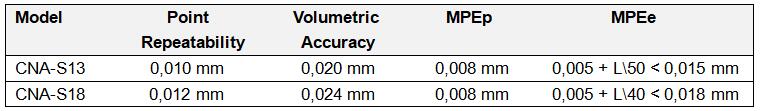

Any value in this table is reported as Maximum Permissible Error
MPEp: is the Maximum Permissible Probing Error according to the ISO 10360-2 standard
MPEe: is the Volumetric Length Measuring Error according to the ISO 10360-2 standard
TECHNICAL DATA
POWER SUPPLY 100-240V / 50-60 Hz
PROTECTION IP 54
OPERATING CONDITIONS +10° – +40° ; Humidity 90% without condensing
CONFORMITY In compliance with CE
